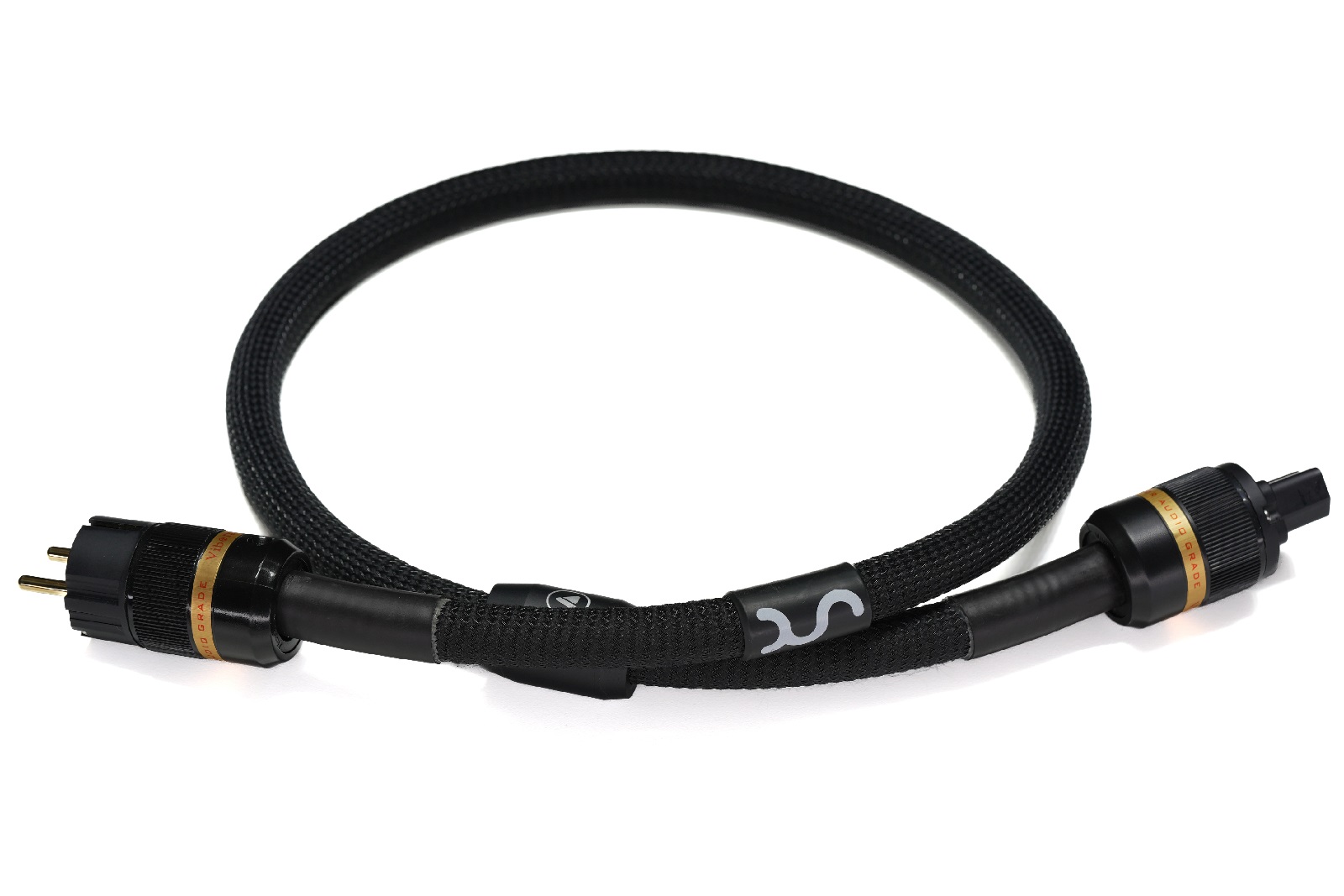

CBL Power 1a




Power cable
To order, write to us by e-mail: info@jak-audio.com
Introductory price (one cable) incl. VAT:
1 m: 510€ 460€
1.5 m: 580€ 530€
2 m: 650€ 600€
Description
For our Hi-Fi devices, we have created a series of high-quality cables that are an integral part of every audio chain and have a significant impact on the music reproduction experience.

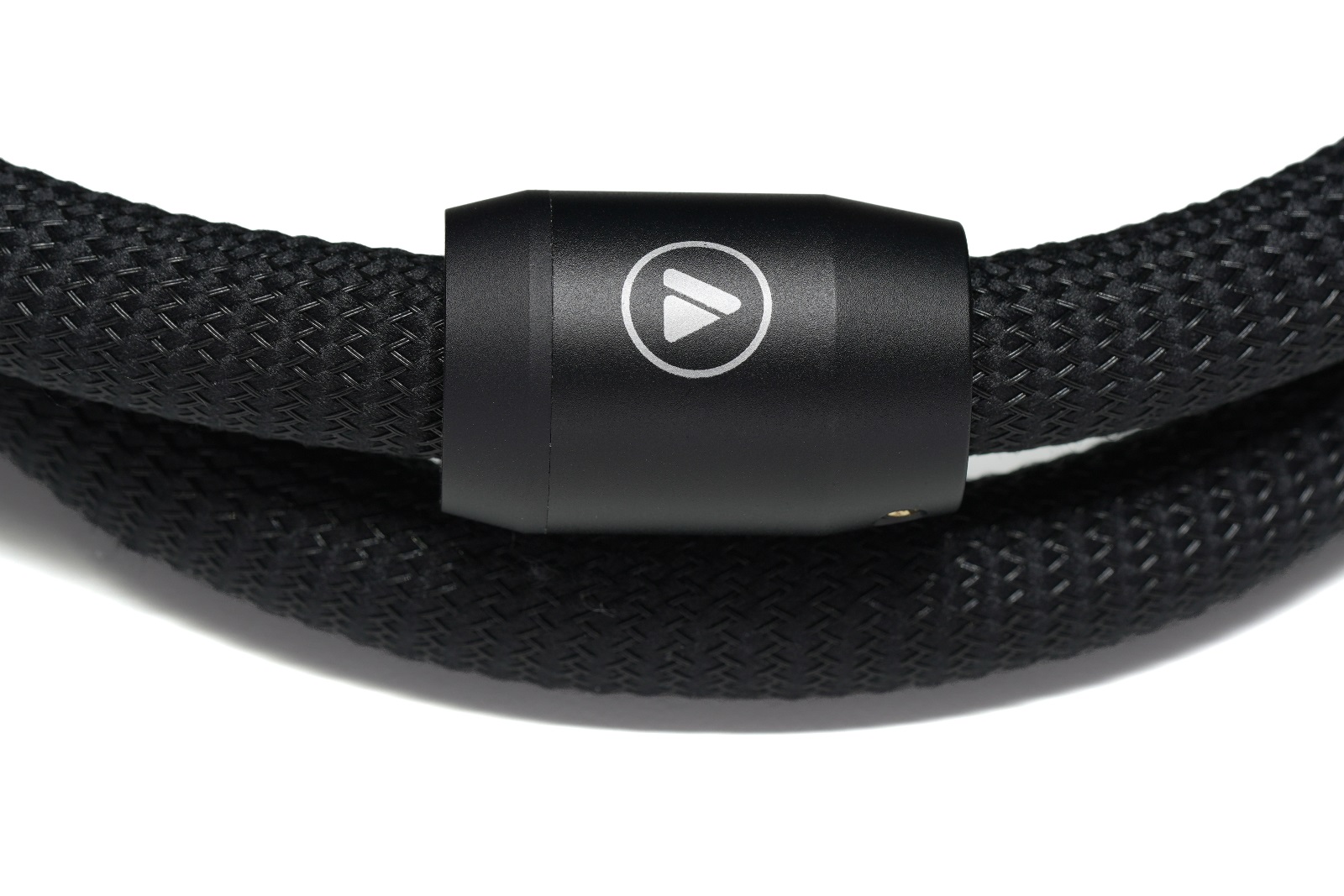

For this power cable, we use conductors consisting of OFC copper strands. The phase and neutral conductors are additionally silver-plated, while the protective conductor is tinned. The insulation of the conductors consists of softened PVC. The cable core is stranded, which ensures good flexibility. To eliminate EMI radiation and noise, the cable is double-shielded with tinned copper braid and aluminum foil, and a ferrite filter is also used. All this contributes significantly to the naturalness and purity of the sound in the bass, midrange and treble areas and to highlighting even the smallest details.

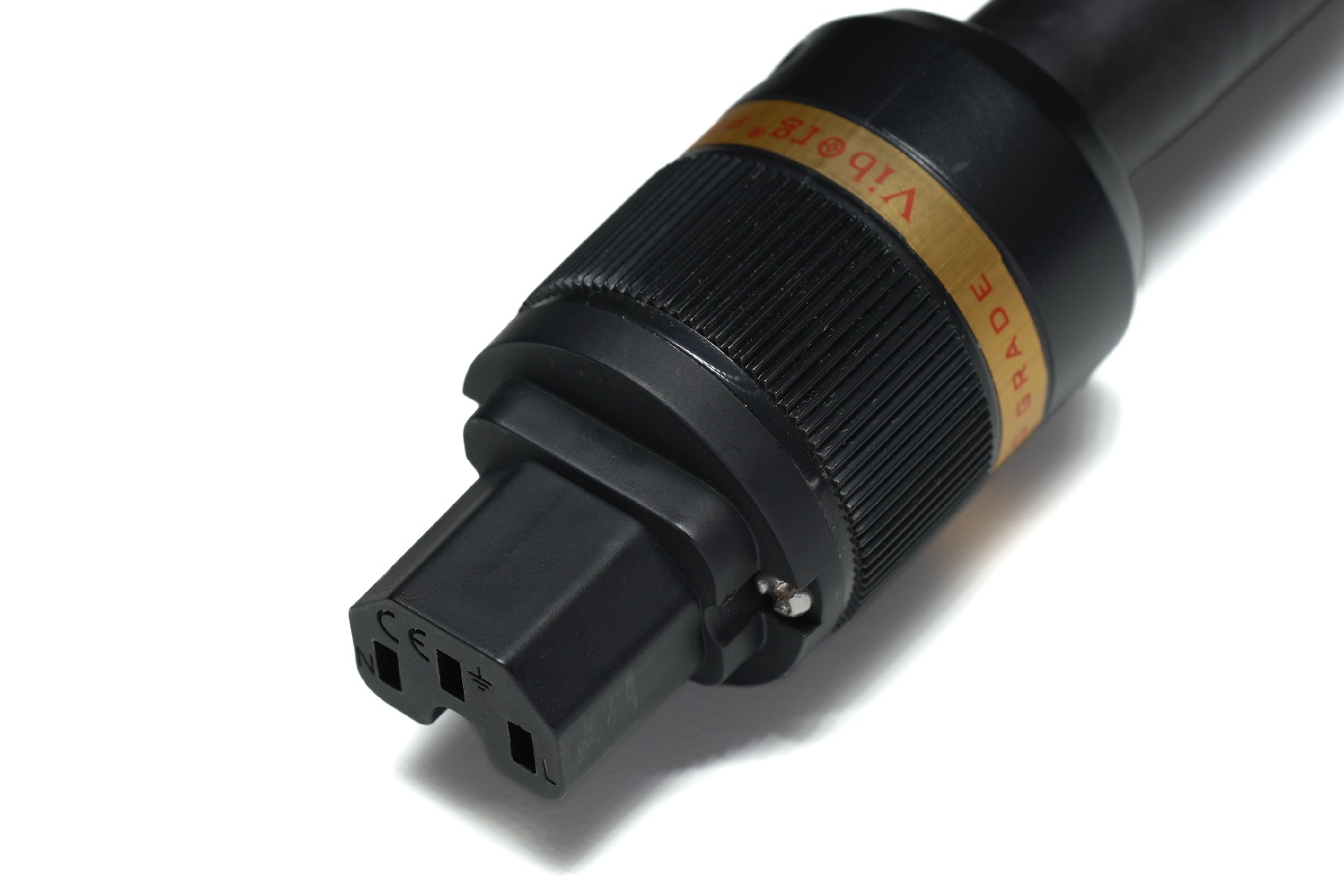

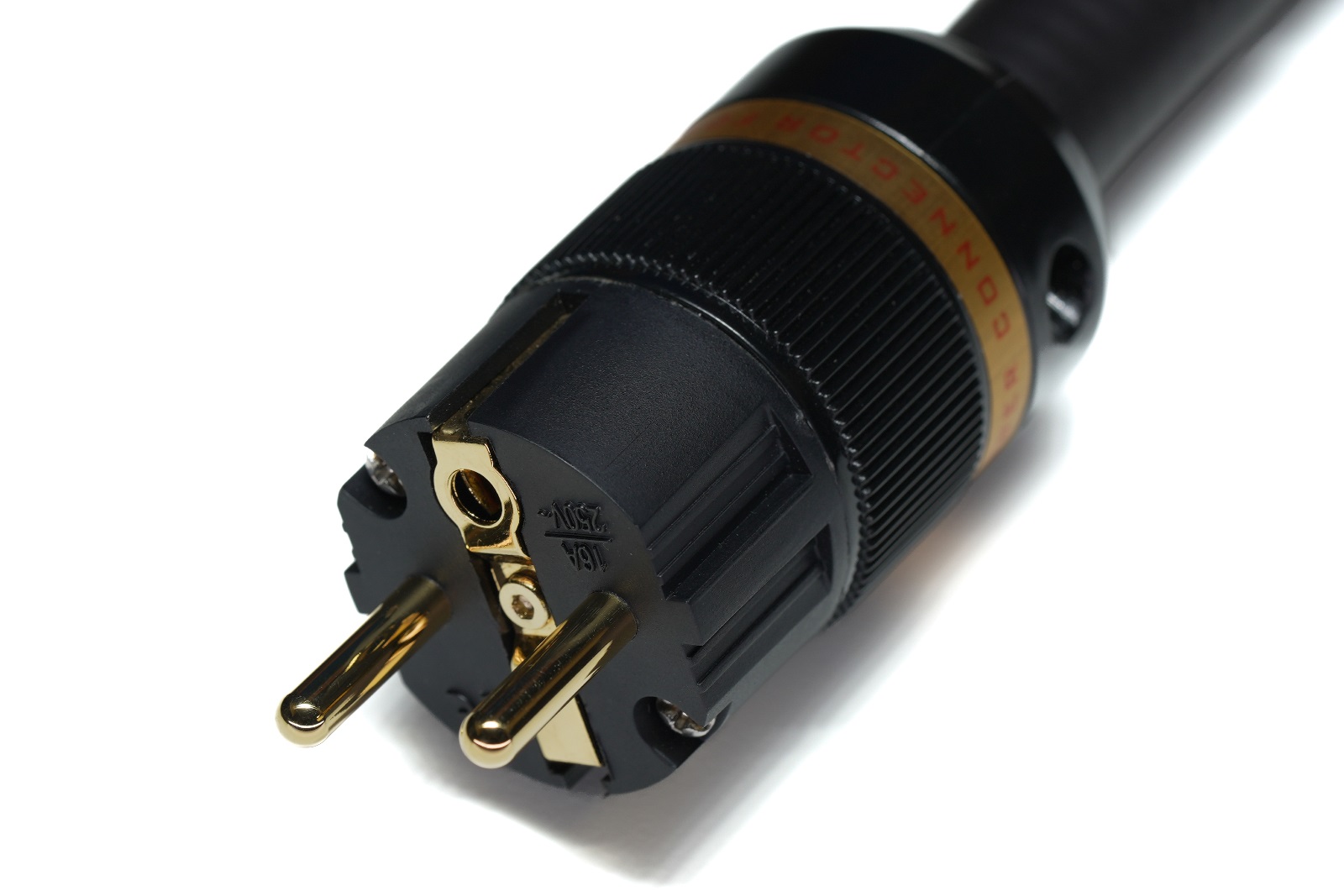

For our CBL Power 1a, we used high-quality Viborg connectors. They are made of OFC copper plated with gold and silver. The connector housing is made of nylon and fiberglass, which is a light, strong and electromagnetically neutral material.
High-quality crimp sleeves made of gold-plated OCC copper are used between the cable and the connector.
Our products are not mass-produced on a production line. Each original piece is assembled piece by piece by hand. Each electronic component is tested and measured before installation. After assembly, comprehensive functional testing and parameter measurement follow. Finally, each product is tested in our listening room to make sure that everything is as it should be.
Technical information
- Conductor material: silver-plated OFC copper
- Conductor type: stranded
- Conductor cross-section: 6 mm²
- Total cable diameter: 17 mm
- Current rating: 10 A
- Maximum voltage: 250 VAC
- Insulation: flexible plasticized PVC
- Shielding: aluminum foil + tinned copper braid
- EMI filter: Viablue
- Connector: Viborg
- Connector type: CEE 7/7 (Schuko) and IEC C15
- Standard: European
- Cable length: 1 m / 1.5 m / 2 m / other lengths please specify when ordering
- Package contents: 1 x cable
