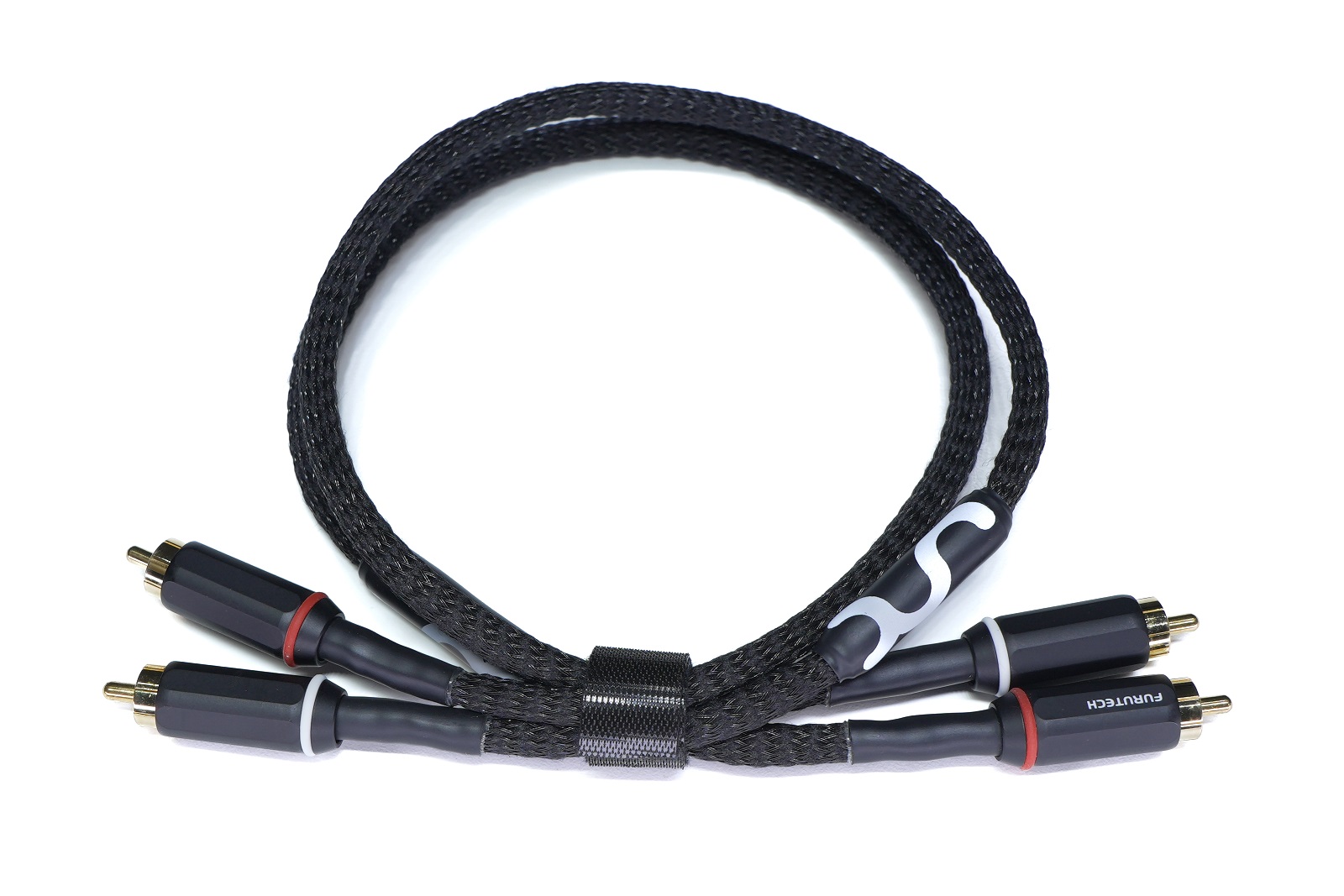

CBL RCA 1a



RCA signal cable
To order, write to us by e-mail: info@jak-audio.com
Introductory price (pair of cables) incl. VAT:
0.5 m: 400€ 350€
1 m: 430€ 380€
1.5 m: 460€ 410€
2 m: 490€ 440€
Description
For our Hi-Fi devices, we have created a series of high-quality cables that are an integral part of every audio chain and have a significant impact on the experience of music reproduction.
For this cable, we use a special alloy of copper, gold and silver in a precisely defined ratio. This ratio was determined through demanding listening tests. Wherever this material is used in the audio chain, it will positively affect the listening experience. The resulting sound could be defined as calm, transparent and structured down to the smallest detail. The insulation consists of Teflon and flexible plasticized PVC. This cable has a solid core, which results in less signal degradation, but reduced flexibility must be taken into account.

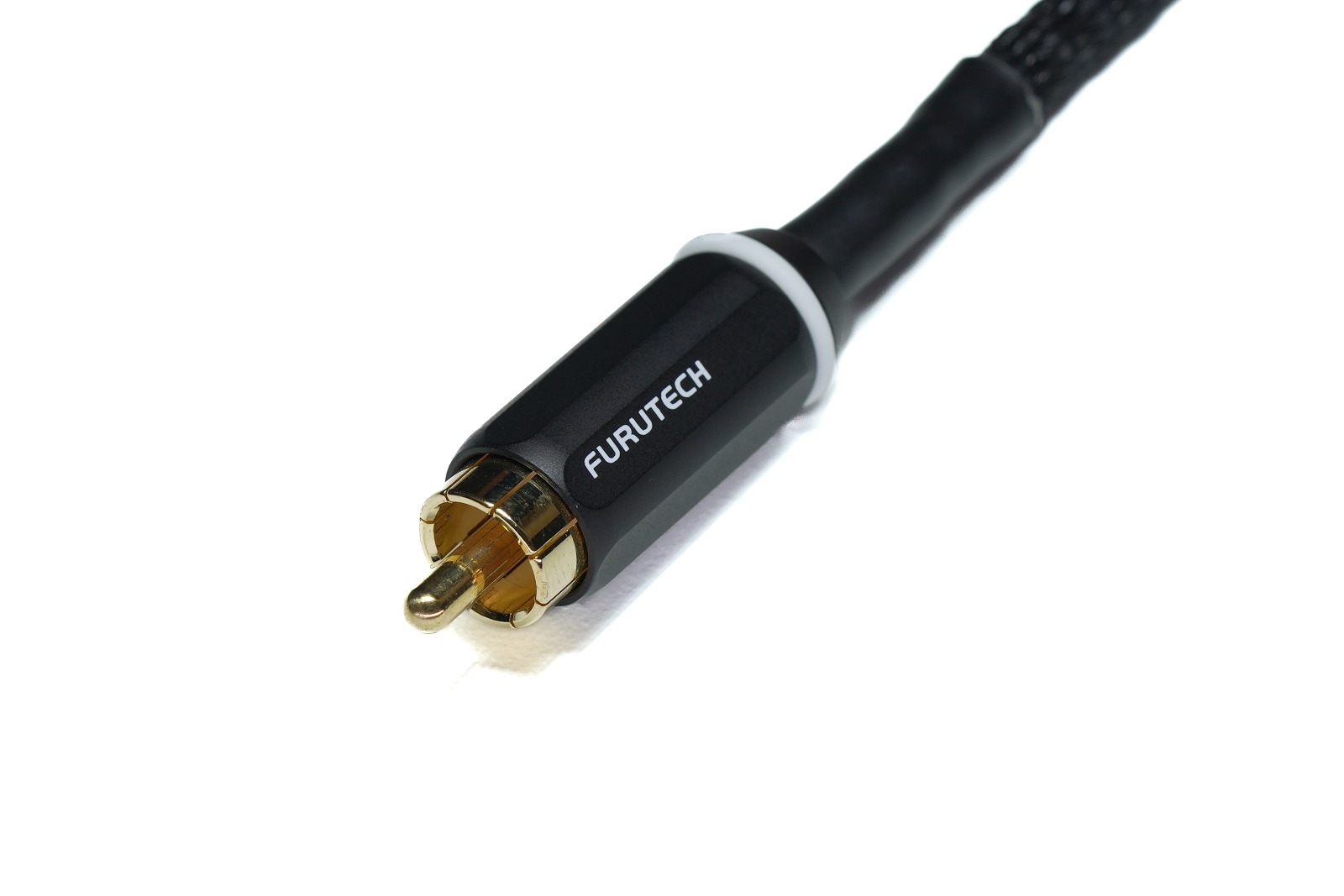

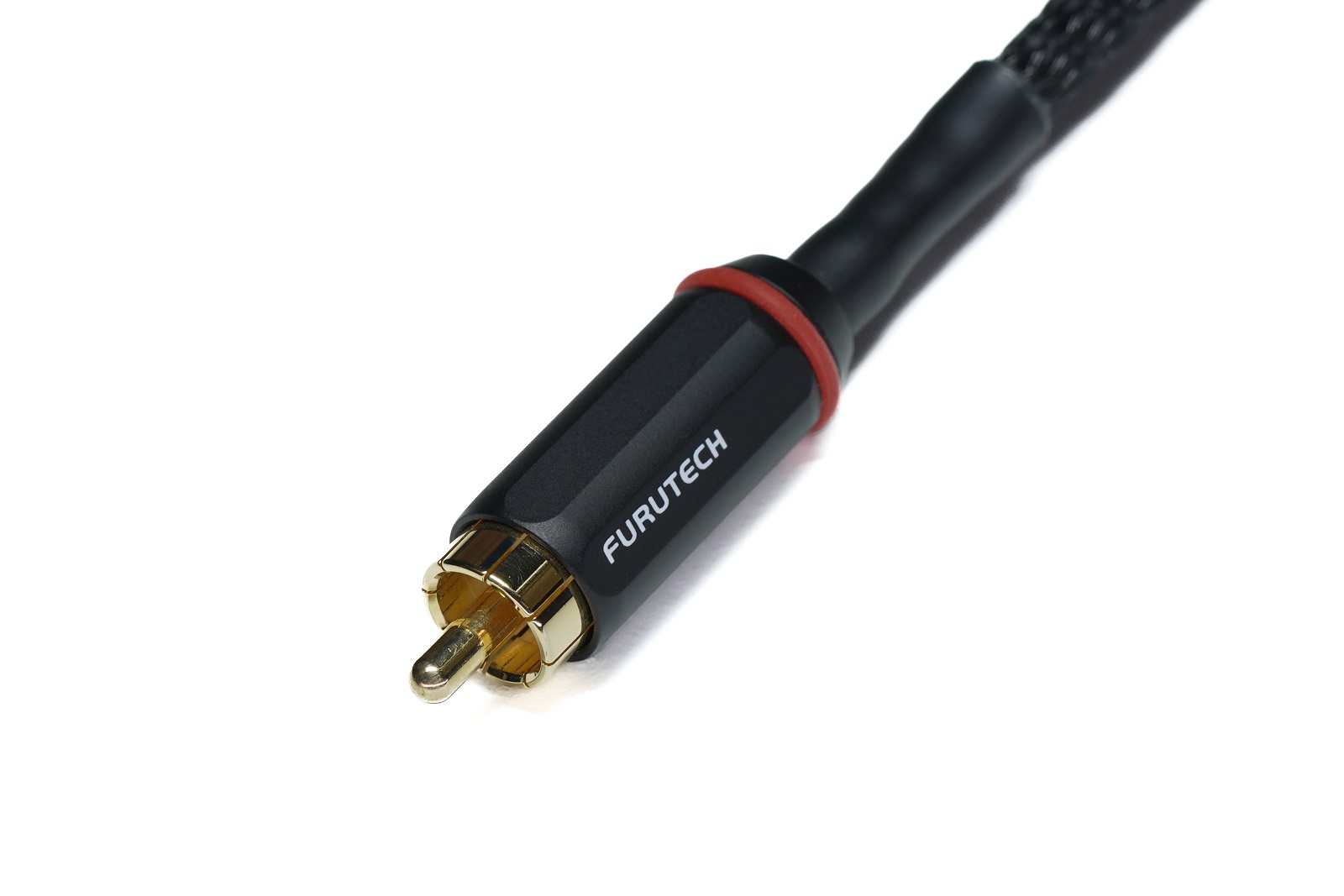

For our CBL RCA 1a, we used high-quality Furutech connectors. They are made of OCC copper plated with 24-karat gold and have also undergone a demagnetization process. The insulation is made of Teflon.
The connectors are soldered to the cable with high-quality lead-free solder from Mundorf with 10 % pure silver content.
Our products are not mass-produced on a production line. Each original piece is assembled piece by piece by hand. Each electronic component is tested and measured before installation. After assembly, comprehensive functional testing and parameter measurement follow. Finally, each product is tested in our listening room to make sure that everything is as it should be.
Technical information
- Conductor material: gold, silver and copper alloy
- Conductor type: solid
- Conductor cross-section: 0.785 mm²
- Total cable diameter: 6 mm
- Insulation: teflon, flexible plasticized PVC
- DC resistance: 22 mOhm/meter
- Nominal voltage: 300 V (DC)
- Connector: Furutech
- Solder: Mundorf (10 % silver)
- Cable length: 0.5 m / 1 m / 1.5 m / 2 m / other lengths please specify when ordering
- Package contents: 2 x cable
